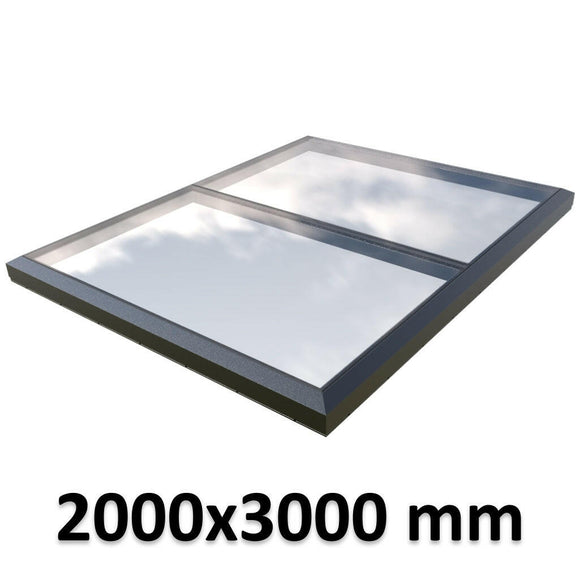

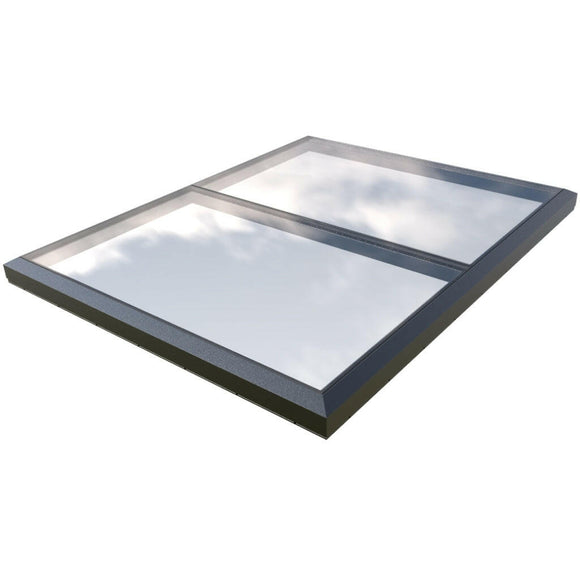

2000 x 3000 mm Fixed Glass Link Modular Skylight | 1 Fixed 0 Opening

Illuminate Your Space with Glass Link Fixed Modular Skylight

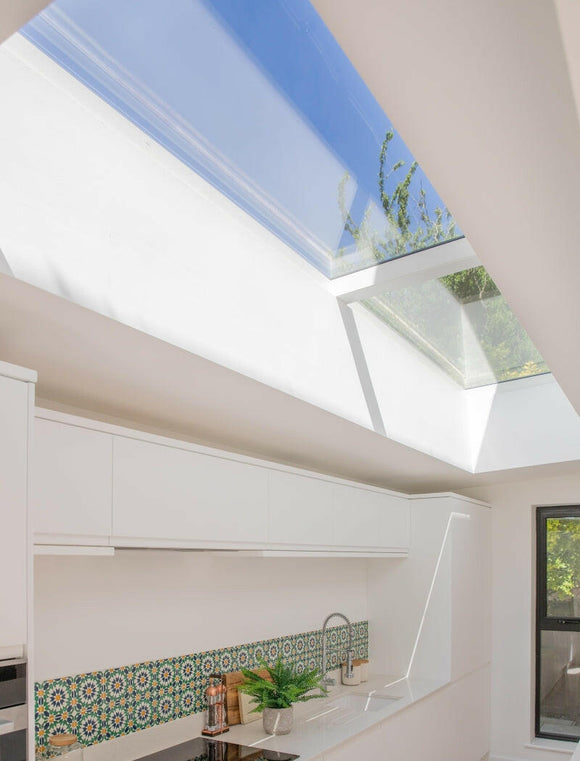

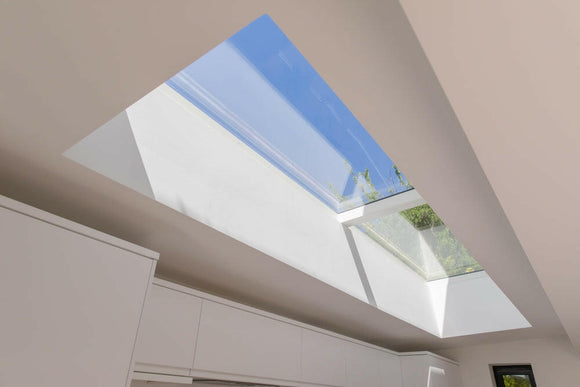

Enhance your interiors with a modern skylight designed to flood large, open areas with natural light. The Glass Link Fixed Modular Skylight boasts a streamlined, flush design that complements contemporary architectural styles, making it a versatile choice for residential and commercial spaces alike.

Top Benefits of the Fixed Modular Skylight

• Abundant Natural Light
  Large glass panels with minimal framing allow maximum daylight to brighten your space, creating a welcoming and airy atmosphere.
• Versatile Design Compatibility
  Engineered to suit roof pitches from 2° to 35°, this skylight integrates effortlessly into a wide range of architectural designs.
• Hassle-Free Installation
  Factory-glazed modules are designed for quick assembly.
• Superior Thermal Performance
  A thermally broken aluminium frame paired with Low-E double-glazed glass provides excellent insulation, minimising heat loss and boosting energy efficiency.
• Robust Safety Features
  Laminated inner glass meets rigorous industry standards (CWCT TN-67 Class 2 and ACR[M]001 Class B), offering added protection and peace of mind.
• Durable and Stylish Finish
  Constructed with powder-coated aluminium, featuring an Anthracite Grey (RAL 7016) exterior and White (RAL 9010) interior, the skylight combines durability with a sophisticated look.
• Enhanced Security
  Designed to provide robust protection, this skylight ensures both safety and reliability for any property.

Transform your space with a skylight that combines sleek design, efficient functionality, and superior performance. Ideal for brightening large areas, the Fixed Modular Skylight is the perfect solution to elevate your project with style and practicality.

Technical Datasheet

Glazing Specifications

• Durable Outer Pane: 6mm toughened glass for long-lasting performance.
• Insulated Spacer: 16mm argon-filled gap to enhance thermal efficiency.
• Laminated Inner Pane: 9.5mm pane with a 1.5mm PVB interlayer, increasing to 11.5mm for larger units.
• Energy-Efficient Coating: Low-E coating for superior thermal performance.

Design and Build

• Minimalist, flush finish offers a sleek, contemporary look, even on opening sections.
• Concealed internal components and actuators preserve a clear and uninterrupted light well.
• Dual-tone aluminium frame: Anthracite Grey (RAL 7016) externally, White (RAL 9010) internally.
• Thermally broken aluminium frame optimises energy efficiency and minimises heat loss.

Installation and Compatibility

• Compatible with roof pitches ranging from 2° to 35° across the width and 0° to 15° longitudinally.
• Larger skylights may require a minimum pitch of up to 5° for effective drainage.
• Engineered to prevent water pooling and promote efficient water runoff.

Performance and Standards

• Thermal Performance: U-Value between 1.90 and 2.1 W/m²K.
• Acoustic Insulation: Rated at 39dB (Rw) for noise reduction.
• Load Resistance: Wind load up to 1200 N/m² and snow load up to 600 N/m².
• Light Transmission: 77%–78%.
• Solar Gain (G-Value): 0.56–0.57.
• Reflectance: 12%.
• Shading Coefficient: 0.64–0.65.

Sustainability and Materials

• Crafted with recyclable materials such as aluminium, glass, ABS, and PVC.
• Verified Environmental Product Declaration (EPD) for eco-conscious construction.
• Thermally efficient frame supports sustainable building practices.

Warranty and Certification

• Backed by a 10-year commercial warranty for dependable performance.
• Meets ISO 9001 and ISO 14001 standards for quality and environmental compliance.

Product Care

Modular Skylights Installation Guide

Non-Fragility and Occupant Safety

• Certified Non-Fragility: Designed to comply with CWCT TN-67 Class 2 and ACR[M]001 Class B standards when installed following approved guidelines.
• Laminated Inner Pane: Provides enhanced safety for occupants by meeting industry standards, protecting against breakage and falling glass.
• Important Precautions: Rooflights are not designed to bear foot traffic or heavy impacts. Damage from such incidents may require replacement to ensure continued safety.

Compliance and Quality Standards

• All glazing components adhere to rigorous testing standards, including BS EN12150, BS 14449, and BS 1279, ensuring superior durability and safety.
• Manufactured to meet or exceed requirements for quality, strength, and safety in modern building applications.

Security Features

• Anti-Tamper Fixings: Installed with self-drilling fixings designed to deter unauthorised access.
• Structural Support: Secured onto insulated builder’s upstands to maintain stability and integrity during use.

Fire Performance

• Fire Resistance: Classified as Class A under EN13501-1 for fire performance, ensuring compliance with European standards.
• Materials: Constructed with CWFT (Classified Without Further Testing) materials, meeting EU Commission Decision 96/603/EC.
• External Fire Spread Compliance: Features a toughened outer pane rated for BROOF(t4) in accordance with building regulations, offering protection against external flame spread and heat penetration.

Load Resistance

• Wind Resistance: Designed to withstand wind loads of up to 1200 N/m² as per BS EN 1991-1-4: 2005, ensuring stability in various weather conditions.
• Snow Resistance: Certified to endure snow loads up to 600 N/m², meeting the criteria of BS EN 1873: 2005 for non-accessible roof coverings under heavy snow accumulation.

Construction Safety Guidelines

• Complies with best practices for safety under Construction Design Management (CDM) regulations.
• Installation is performed following precise guidelines to ensure the product maintains its safety and performance standards.

• Structural Durability: Glass Link Rooflights are designed to remain fit for purpose under normal industrial conditions for up to 20 years. A 10-year warranty is available, covering protection against perforation, structural deformation, or weather-tightness failure.
• Insulated Glass: Guaranteed for 5 years, ensuring performance and durability during this period.

If you notice any cracks in the glass upon delivery, please contact us immediately. It is crucial to report any damage within 12 hours of delivery to maintain your eligibility for a return or replacement. We urge you to reach out to us promptly so we can resolve the issue efficiently.
