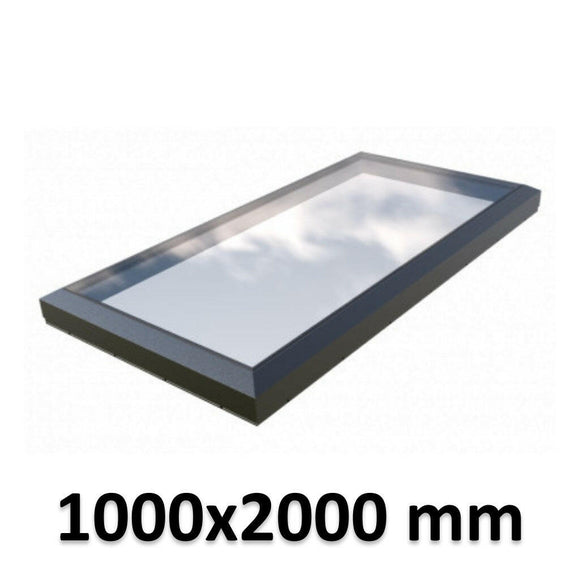

1000 x 2000 mm Fixed Glass Link Skylight | Premium Range

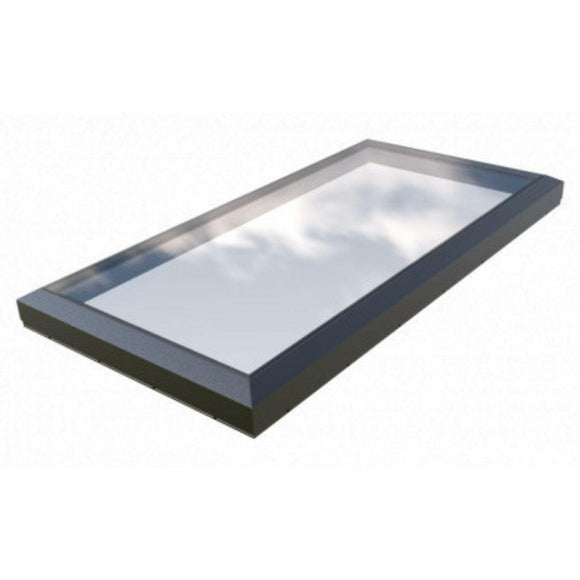

Brighten Your Space with Glass Link Fixed Single Module Skylight

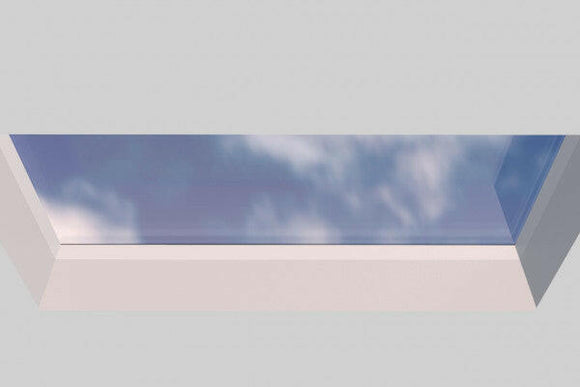

Designed to seamlessly integrate into modern architectural projects, the Fixed Single Module Skylight transforms interiors by delivering abundant natural light. Its sleek, frameless design complements both residential and commercial spaces, creating a sophisticated and bright atmosphere while offering excellent performance and durability.

Key Features and Benefits

• Maximised Natural Light
  The expansive glazed surface allows sunlight to pour in, creating an open, vibrant, and inviting ambiance with minimal framing for uninterrupted views.
• Versatile Design
  Compatible with roof pitches from 2° to 35°, this skylight easily adapts to a variety of building designs, ensuring seamless integration with your project.
• Energy-Saving Efficiency
  Built with a thermally broken aluminium frame and energy-efficient Low-E double glazing, it enhances insulation, reduces heat loss, and lowers energy costs.
• Enhanced Safety Standards
  Laminated inner glass provides added safety and meets rigorous CWCT TN-67 (Class 2) and ACR[M]001 Class B certifications, ensuring peace of mind for both occupants and installers.
• Sleek and Durable Finish
  Constructed from powder-coated aluminium with an Anthracite Grey (RAL 7016) exterior and a White (RAL 9010) interior, the skylight delivers a stylish, weather-resistant, and long-lasting finish.
• Secure and Robust
  Engineered with security in mind, this skylight adds a strong and reliable feature to any property, enhancing its overall durability.

Elevate your space with a skylight that seamlessly combines form and function, offering a stunning solution for brightening interiors while delivering reliable performance and timeless style. Perfect for enhancing open areas, this skylight makes a striking addition to any modern project.

Technical Datasheet

Glazing Specifications

• Durable Outer Pane: 6mm toughened glass for long-lasting performance.
• Insulated Spacer: 16mm argon-filled gap to enhance thermal efficiency.
• Laminated Inner Pane: 9.5mm pane with a 1.5mm PVB interlayer, increasing to 11.5mm for larger units.
• Energy-Efficient Coating: Low-E coating for superior thermal performance.

Design and Build

• Minimalist, flush finish offers a sleek, contemporary look, even on opening sections.
• Concealed internal components and actuators preserve a clear and uninterrupted light well.
• Dual-tone aluminium frame: Anthracite Grey (RAL 7016) externally, White (RAL 9010) internally.
• Thermally broken aluminium frame optimises energy efficiency and minimises heat loss.

Installation and Compatibility

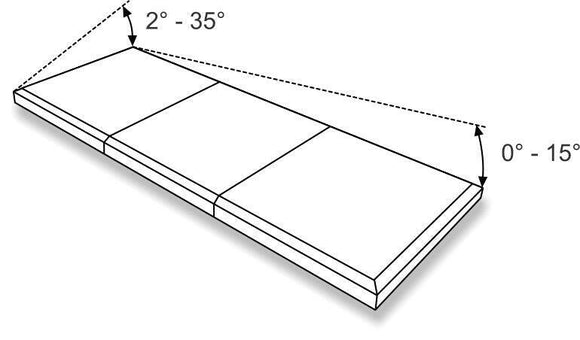

• Compatible with roof pitches ranging from 2° to 35° across the width and 0° to 15° longitudinally.
• Larger skylights may require a minimum pitch of up to 5° for effective drainage.
• Engineered to prevent water pooling and promote efficient water runoff.

Performance and Standards

• Thermal Performance: U-Value between 1.90 and 2.1 W/m²K.
• Acoustic Insulation: Rated at 39dB (Rw) for noise reduction.
• Load Resistance: Wind load up to 1200 N/m² and snow load up to 600 N/m².
• Light Transmission: 77%–78%.
• Solar Gain (G-Value): 0.56–0.57.
• Reflectance: 12%.
• Shading Coefficient: 0.64–0.65.

Sustainability and Materials

• Crafted with recyclable materials such as aluminium, glass, ABS, and PVC.
• Verified Environmental Product Declaration (EPD) for eco-conscious construction.
• Thermally efficient frame supports sustainable building practices.

Warranty and Certification

• Backed by a 10-year commercial warranty for dependable performance.
• Meets ISO 9001 and ISO 14001 standards for quality and environmental compliance.

Product Care

Glass Link Single Module Skylights Installation Guide

Non-Fragility and Occupant Safety

• Certified Non-Fragility: Designed to comply with CWCT TN-67 Class 2 and ACR[M]001 Class B standards when installed following approved guidelines.
• Laminated Inner Pane: Provides enhanced safety for occupants by meeting industry standards, protecting against breakage and falling glass.
• Important Precautions: Rooflights are not designed to bear foot traffic or heavy impacts. Damage from such incidents may require replacement to ensure continued safety.

Compliance and Quality Standards

• All glazing components adhere to rigorous testing standards, including BS EN12150, BS 14449, and BS 1279, ensuring superior durability and safety.
• Manufactured to meet or exceed requirements for quality, strength, and safety in modern building applications.

Security Features

• Anti-Tamper Fixings: Installed with self-drilling fixings designed to deter unauthorised access.
• Structural Support: Secured onto insulated builder’s upstands to maintain stability and integrity during use.

Fire Performance

• Fire Resistance: Classified as Class A under EN13501-1 for fire performance, ensuring compliance with European standards.
• Materials: Constructed with CWFT (Classified Without Further Testing) materials, meeting EU Commission Decision 96/603/EC.
• External Fire Spread Compliance: Features a toughened outer pane rated for BROOF(t4) in accordance with building regulations, offering protection against external flame spread and heat penetration.

Load Resistance

• Wind Resistance: Designed to withstand wind loads of up to 1200 N/m² as per BS EN 1991-1-4: 2005, ensuring stability in various weather conditions.
• Snow Resistance: Certified to endure snow loads up to 600 N/m², meeting the criteria of BS EN 1873: 2005 for non-accessible roof coverings under heavy snow accumulation.

Construction Safety Guidelines

• Complies with best practices for safety under Construction Design Management (CDM) regulations.
• Installation is performed following precise guidelines to ensure the product maintains its safety and performance standards.

• Structural Durability: Glass Link Rooflights are designed to remain fit for purpose under normal industrial conditions for up to 20 years. A 10-year warranty is available, covering protection against perforation, structural deformation, or weather-tightness failure.
• Insulated Glass: Guaranteed for 5 years, ensuring performance and durability during this period.

If you notice any cracks in the glass upon delivery, please contact us immediately. It is crucial to report any damage within 12 hours of delivery to maintain your eligibility for a return or replacement. We urge you to reach out to us promptly so we can resolve the issue efficiently.
